Hinged repair clamp for pipeline repair or welding parts protection

Product Description  Folding Pipe Connection PatchWithout replacing pipes, Folding Pipe Connection Patch can repair the pipes that are ageing and corrosive and the pipe wall has holes or cra

Featured Products

Product Description

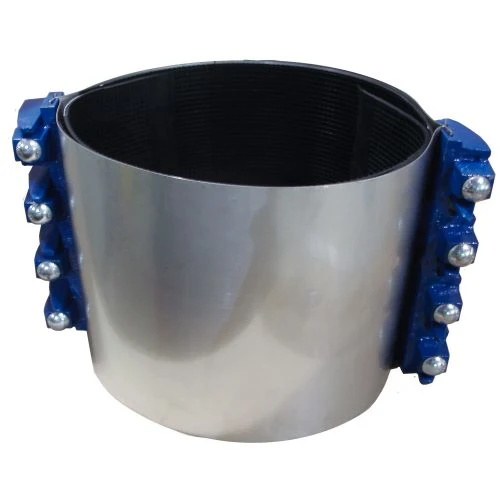

Folding Pipe Connection Patch

Without replacing pipes, Folding Pipe Connection Patch can repair the pipes
that are ageing and corrosive and the pipe wall has holes or cracks. When
installing it, it only needs pipe connector to wrap the leakage part and tighten
 the bolt. Then the installation is finished ideally and reliably.

External diameter of  Folding Pipe Connection Patch is from 27 to 300 mm.


Specification

O.DOut-dia range(mm)Length(mm)Setting Gap     W(mm)Working Pressure(N.m.)Weight(kg)
(mm)shortlongshortlongMpashortlong
4242-445710015±1030±252.55-100.350.5
48.647-495710015±1030±252.55-100.350.6
6059-628013920±1545±402.510-150.81.4
7675-788013920±1545±402.510-150.861.5
8988-9210720325±2060±551.615-201.63.1
108106-11010720325±2060±551.615-201.83.4
114112-11610720325±2060±551.615-202.13.7
140137-14311620430±2560±551.625-303.14.7
159157-17011620330±2560±551.625-303.25.9
168166-17011620330±2560±551.625-303.46.2
219217-22115525530±2560±551.240-80712.2
273271-27515525530±2560±551.240-807.913.5
325323-32715525530±2560±55180-120916.3
377375-38115525530±2560±55180-1201118.6
426424-42815525530±2560±550.880-12012.320.4
480476-48415525530±2560±550.880-1201321.6
530526-53415525530±2560±550.8120-15014.123.8



Hinge Type Repair Clamp for Pipe Repair or Welded Part Protection

Hinge Type Repair Clamp for Pipe Repair or Welded Part Protection
Hinge Type Repair Clamp for Pipe Repair or Welded Part Protection
Hinge Type Repair Clamp for Pipe Repair or Welded Part Protection
