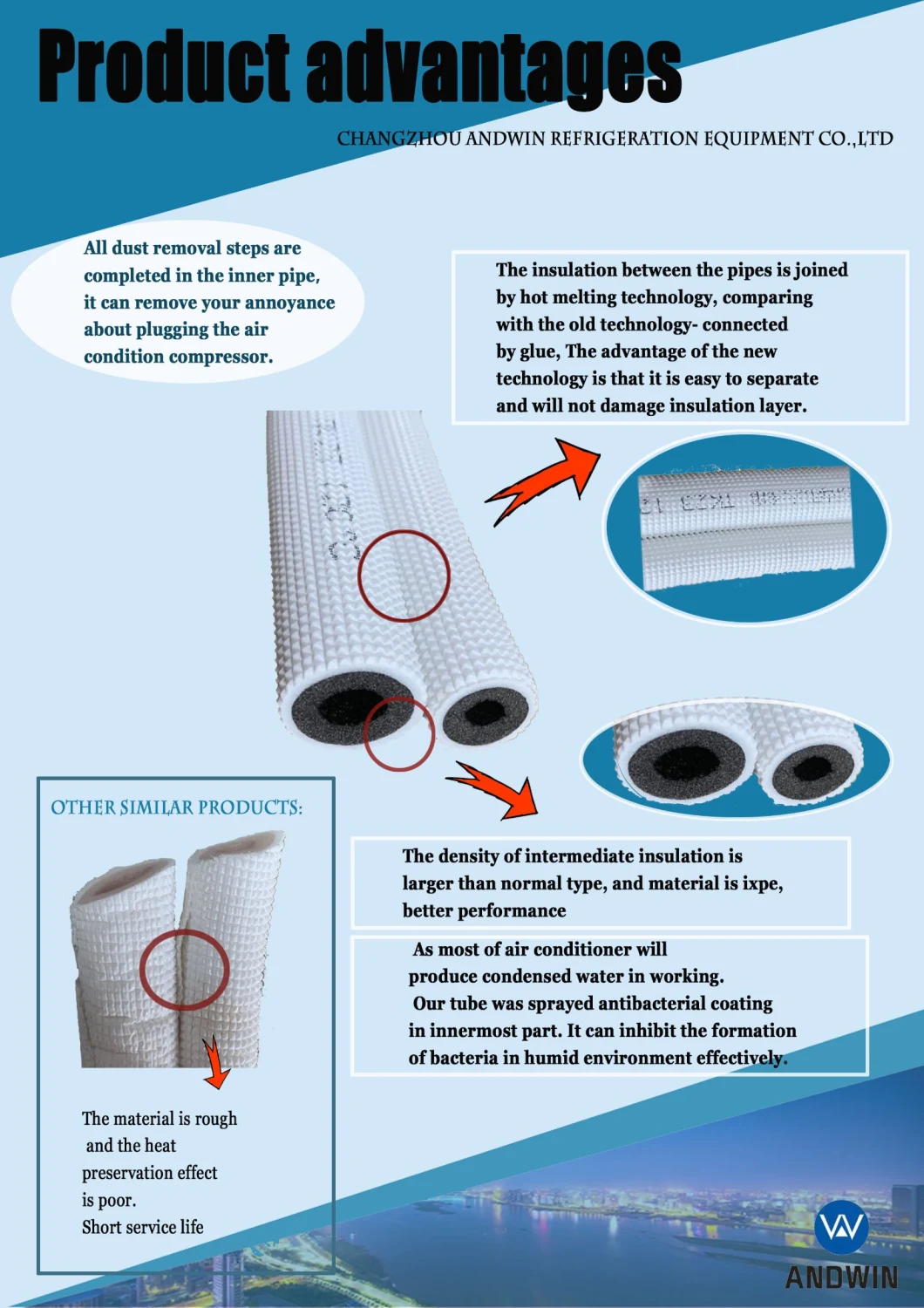

Refrigeration Part, Insulation Copper Tube for Air Conditioner
Advantages:
1.OEM is welcomed.
2.Certificate:ISO9001:2008
3.Standard:JIS H3300
4.Most competitive prices
5.Reliable Quality&Service
Product Application
1. Pancake Coil for ACR, General Engineering Applications
2. LWC Coil for ACR, General Engineering Applications
3. Straight Copper Tubes for ACR and Refrigeration
4. Inner-grooved copper tube for ACR and Refrigeration
5. Copper Pipe for Transportation System of water, gas and oil
6.PE-coated copper tube for water/gas/oil transportation system
7.Semi-finished Copper tube for industrial applications
Technical Parameter:
1. Suggestion sizes of air-conditioning pipe insulation(double pipe) Parameters (For R410A, R404A, R407C, R507A, R134A refrigerant)
| specification | size of aluminum tube | size of insulation tube | wall thickness of insulation tube | Suitable for | Length(m) | |||
| 1/4"+3/8" | 6.35×0.8+9.52×0.8mm | φ8(±0.5)+φ12(±0.5) | 8mm+8mm | 1HP | 3-30 | |||
| 1/4"+1/2" | 6.35×0.8+12.70×0.8mm | φ8(±0.5)+φ14(±0.5) | 8mm+8mm | 1.5HP | 3-30 | |||
| 1/4"+5/8" | 6.35×0.8+15.88×1.0mm | φ8(±0.5)+φ18(±0.5) | 8mm+8mm | 2HP | 3-30 | |||
| 3/8"+5/8" | 9.52×0.8+15.88×1.0mm | φ12(±0.5)+φ18(±0.5) | 8mm+8mm | 3HP | 3-30 | |||
| 3/8"+3/4" | 9.52×0.8+19.05×1.0mm | φ12(±0.5)+φ22(±1) | 8mm+8mm | 4HP | 3-30 | |||
| 1/2"+3/4" | 12.70×0.8+19.05×1.0mm | φ14(±0.5)+φ22(±1) | 8mm+8mm | 5HP | 3-30 | |||
2.Suggestion sizes of air-conditioning pipe insulation(double pipe) Parameters (For R22,R12 refrigerant)
| specification | size of aluminum tube | size of insulation tube | wall thickness of insulation tube | Suitable for | Length(m) | ||
| 1/4"+3/8" | 6.35×0.6+9.52×0.6mm | φ8(±0.5)+φ12(±0.5) | 8mm+8mm | 1HP | 3-30 | ||
| 1/4"+1/2" | 6.35×0.6+12.70×0.6mm | φ8(±0.5)+φ14(±0.5) | 8mm+8mm | 1.5HP | 3-30 | ||
| 1/4"+5/8" | 6.35×0.6+15.88×0.8mm | φ8(±0.5)+φ18(±0.5) | 8mm+8mm | 2HP | 3-30 | ||
| 3/8"+5/8" | 9.52×0.6+15.88×0.8mm | φ12(±0.5)+φ18(±0.5) | 8mm+8mm | 3HP | 3-30 | ||
| 3/8"+3/4" | 9.52×0.6+19.05×0.8mm | φ12(±0.5)+φ22(±1) | 8mm+8mm | 4HP | 3-30 | ||
| 1/2"+3/4" | 12.70×0.6+19.05×0.8mm | φ14(±0.5)+φ22(±1) | 8mm+8mm | 5HP | 3-30 | ||
PS:All of the copper diameter and wall thickness can be changed by customers' required.
Production process:
1.copper cutting
2.Deburring
3.Copper aluminum soldering
4.Airtight detection
5.Wear heat shrinkable tube
6.Baking heat shrinkable tube
7.Wear thermal insulation pipe
8.Flaring
9.Blowing clean
10.Dustproof cap
11.Roll up pipe
12.Packing
Package and shipment:
1) Packed with plastic film,or packed in standard export carton.
2)Can packed as customer's requirement
3)Can shipped by sea freight,Air freight,express, cheapest way is sea freigh.
FAQ
1. Q: What is your payment terms?
A: TT, LC etc.
2. Q: What is your delivery terms?
A: FOB, EXW, CIF etc.
3. Q: How to control your quality?
A: We are ISO 9001-2008 certified firm. We have the integrated systerm of production quality control. We have IQC(Incoming quality control), IPQC( In process quality control), FQC(Final quality control), and OQC(Out-going quality control) to control each process of production.
4. Q: What is your main market?
A: Europe, Austrial, East Asia and America etc.
5. Q: Do you provide the samples? How long will it take?
A: Yes, we do. The regual item in stock will be shipped in 3-5 days. And the customized one will be 15-25 days.
6. Q: Can you produce the samll order?
A: Yes, we can. If you order is smaller than our MOQ, we will arrange special prduction for you, but the price will be a little higher.
